Thread: built a new strig jig

  1. #1
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480

    built a new strig jig

    i thought i would build a new more compact string jig this weekend.i may sell some of these if there is interest.cost would be $100 plus shipping this would be a 4 post with string stretcher .the buyer would need to purchase a piece of uni strut from a local electrical contractor supply or maybe home depo.

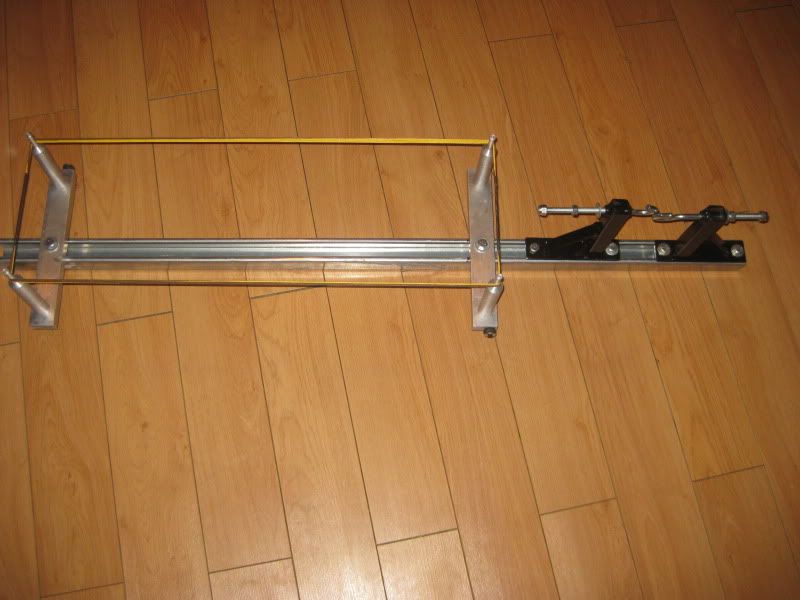

    here is a pic with the total unit set for a crossbow string

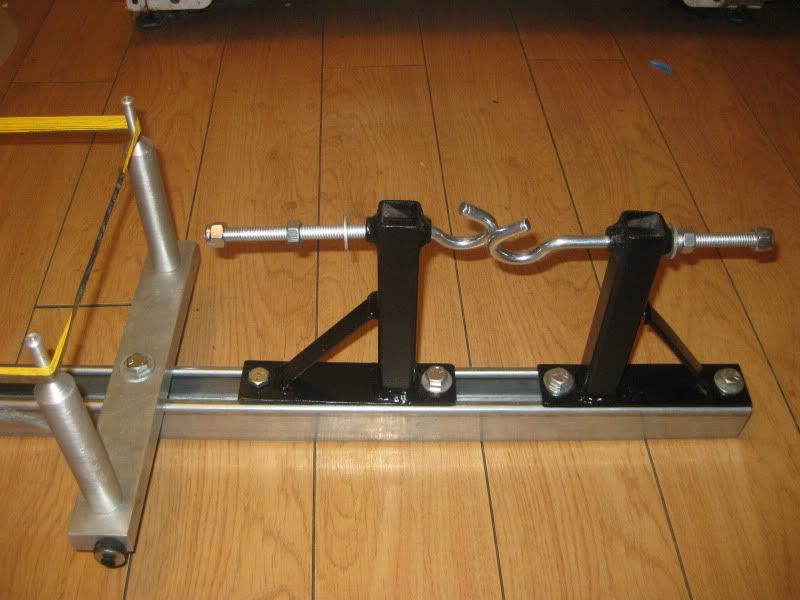

    this is the stretcher

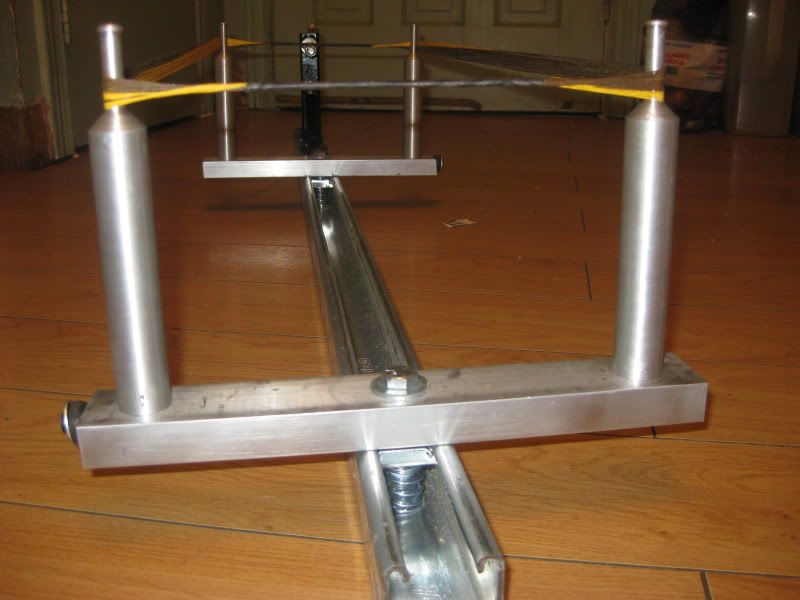

    this pic is layed out with a 32 strand string and end served

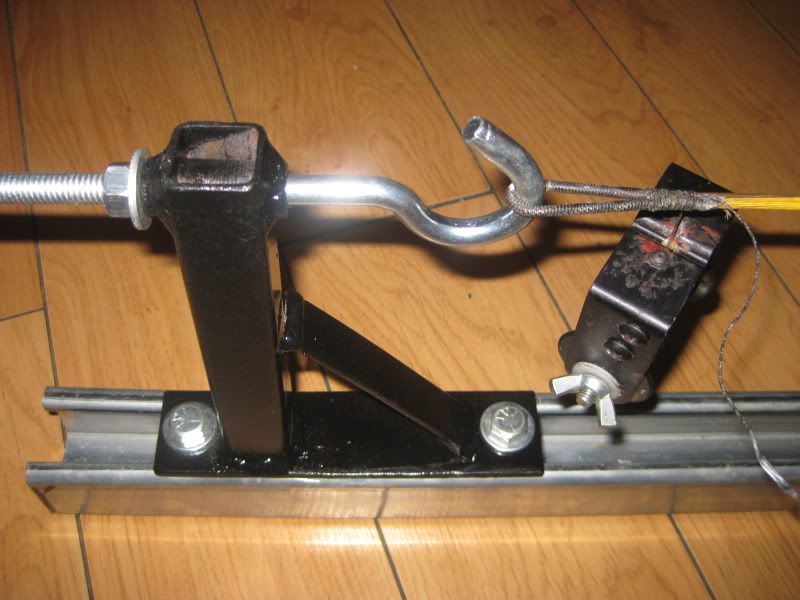

    this pic is closing the end loops

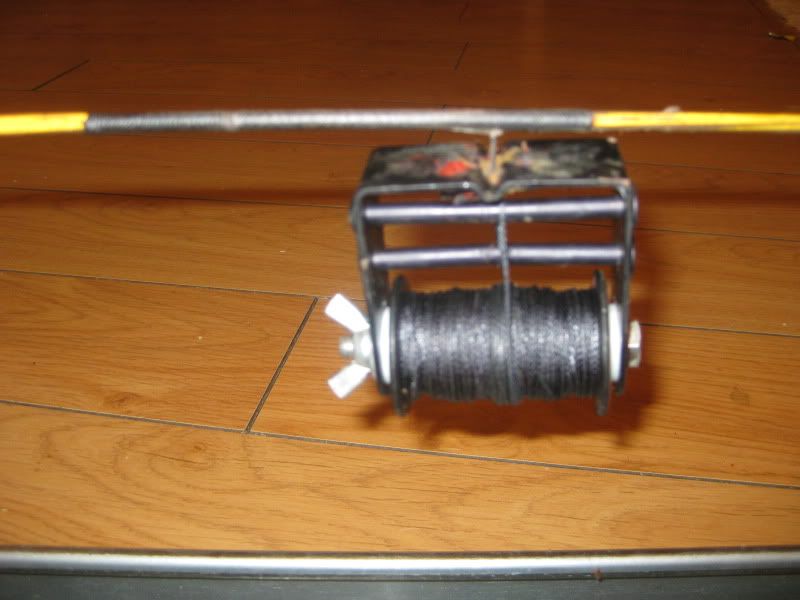

    next is center serving

    and last is a 32 strand brownell b50 string for my excalibur.total cost of the string is about $8 or $9




  2. #2
    Join Date
    Feb 2006
    Location
    Badger, Iowa, United States
    Posts
    919
    Sweet!!! How far apart are the pins from each other??
    2010 Hoyt Maxxis
    2010 Hoyt Contender Elite

  3. #3
    would you post to australia

  4. #4
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    Quote Originally Posted by Jsadams View Post
    Sweet!!! How far apart are the pins from each other??
    8.5"apart so when you make the string if you want 36" you seperate the flat bars by 26"(you gaine 1.5"because of the thickness of the flat bar the pins are fastened in

  5. #5
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    Quote Originally Posted by mattwittman View Post
    would you post to australia
    sent you a pm

  6. #6
    nice..like the stretcher untit..looks like you can add a compression spring to it...thats why I need to learn to weld...LOL

  7. #7
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    Quote Originally Posted by Razorbak View Post
    nice..like the stretcher untit..looks like you can add a compression spring to it...thats why I need to learn to weld...LOL
    the string stretcher bolts are stainless steel used to stretch clothes line wire between 2 posts .i never thought of the springs i may have to try that thanks munch

  8. #8
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    I had my daughter video a how to as i built a string tonight using this jig i need to figure out how to post it to utube then i will put a link up to view the build .maYbe not the best how too but will give the general idea for anyone starting out to see how easy it is munch

  9. #9
    Join Date
    Feb 2010
    Location
    Nova Scotia, Canada
    Posts
    929
    Really nice jig from this guy. I will be getting one from this guy. Order now and beat the crowd.
    Thanks Munch.
    Raymond

  10. #10
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    Quote Originally Posted by Raymond 1 View Post
    Really nice jig from this guy. I will be getting one from this guy. Order now and beat the crowd.
    Thanks Munch.
    Raymond
    ray the turkey hunt offer is still on for april maybe i can give you a personal demonstration(on how to kill turkeys)your on your own with the jig lol

  11. #11
    Join Date
    Nov 2010
    Location
    Lakeland, FL
    Posts
    82
    Munch,
    I have access to a machine shop and really like the posts you have. Could you give dimensions on the ones on your jig? (height, dia., etc.)
    Thanks,
    Jeff

  12. #12
    Hi Would you ship to the UK ?

  13. #13
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    Quote Originally Posted by metony View Post
    Hi Would you ship to the UK ?
    will ship anywhere if you cover the cost of shipping.also i only have this first jig made for myself but did order in material for 6 sets and will build them over the holidays so it's a first come first serve .i,m checking the cost of shipping to Australia tomorrow and will ask at the post office what the rate would be to the UK thanks munch

  14. #14
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    i did do a video of how too the other night then tryed to load to utube.i have never done utube but my file was 1.84gb witch is about 1000 times larger than utube will take. as soon as i figure out how to do another the right way i will post it.i will also try to make a dvd of how too and ship with the jig for the cost of making the disc thanks for all the replys munch

  15. #15
    Join Date
    Dec 2009
    Location
    Cape Cod, MA
    Posts
    207
    nice job.
    '10 Maxxis 31, Sure-Loc Leathal Weapon
    '08 Katera XL, Toxonic, Postons

  16. #16
    Join Date
    Dec 2004
    Location
    Hoke County ,NC
    Posts
    35,969
    Good job ...
    HOYT HAVOC-TEC,EXTREME RT900,DROP ZONE ,MUZZY 3 BLADE,ACC 3-49
    HOYT AM32,VIPER H1000,DROP ZONE ,MUZZY MX3 ,TROPHY RIDGE CRUSH 400

    US Army 1981 - 1989

  17. #17
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    tryed all weekend to post a 4 part string making tutorial but could only get the center serving part to load. i will post the rest if i can figure it out.i'm about ready to give up on utube
    http://www.youtube.com/watch?v=9lssFGXqtEs

  18. #18
    Join Date
    Mar 2009
    Location
    Southern Ont. Canada
    Posts
    1,394
    Very nice munch! Did you know your sweater matched your Christmas towel?
    Wham-O Power Master.
    Daco wood shaft arrows.
    Roper’s Indian Arrowheads.
    Hope to upgrade someday.

  19. #19
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    Quote Originally Posted by wheelie View Post
    Very nice munch! Did you know your sweater matched your Christmas towel?
    moma says i'm a real fashion statement kevin .just before she said ya go ahead make your video and string in my kitchen .bought the shirt just before xmas .put it one and said to my kids .ok lets talk about those christmas lists.they saw no humor it that

  20. #20
    Join Date
    Feb 2009
    Location
    Lebanon, Kentucky
    Posts
    3,047
    Hope you get the rest of the videos up!
    06' Hoyt Ultra Elite
    13' Mathews Monster Chill (Son's)
    13' Bear Apprentice 2 (Son's)
    Mathews Genesis (Son's)

  21. #21
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    well i got part 1 to load on utube
    http://www.youtube.com/watch?v=dYNLq8VvkAU

  22. #22
    Join Date
    Feb 2009
    Location
    Lebanon, Kentucky
    Posts
    3,047
    I watched your videos, but is there any way that you can post some videos on a 2 color compound string? I know that the xbow string is the same I was just wanting to see a regular 2 color string made.
    06' Hoyt Ultra Elite
    13' Mathews Monster Chill (Son's)
    13' Bear Apprentice 2 (Son's)
    Mathews Genesis (Son's)

  23. #23
    Join Date
    Mar 2005
    Location
    otterville on. canada
    Posts
    480
    string building part 2 end servings
    http://www.youtube.com/watch?v=NOofv4Q5NL8

  24. #24
    Join Date
    Jan 2010
    Location
    SOUTH CAROLINA
    Posts
    6,856
    that is a sweet looking jig

  25. #25
    Join Date
    Jan 2010
    Location
    Gilmanton, New Hampshire, United States
    Posts
    1,818
    Nice Job munch!

    Hutch
    HUTCH~N~SON ARCHERY LLC. OWNER OF BOW STRING DEPOT!
