Thread: Various methods of Aiming the Traditional bow

  1. #1

    Various methods of Aiming the Traditional bow

    With all the recent discussions about the different methods of aiming a trad bow I took the time to take a few pics and add visual references to help explain how each method is done. Hopefully they will make understanding the various methods a little bit simpler.

    Instinctive:


    The instinctive shooter focuses on the target and nothing else. Visually, all that is seen is the desired target. Logically we know that the peripheral vision picks up external cues, however, the mind for all intents and purposes does not see them. Without getting into a variety of definitions the concious mind relegates these things to the subconcious and adjusting for windage and elevation are done without any direction from the concious mind. That is essentially the main difference between instinctive shooting and any reference aiming method. A reference shooter will be able to tell you, at some level, where the aiming reference they use was held. An instinctive shooter will not.

    Getting into the reference methods...

    All these methods are based upon learning the point on distance of the bow setup. The point on distance is the point where the shooters line of sight and the trajectory of the arrow meet. This will vary from shooter to shooter. Things like arrow speed, arrow length, anchor point, hold on the string (split finger or three under) will all affect the point on distance. This isn't an all inclusive list of factors. Many reference shooters will tailor the point on distance to the style of shooting done. Many short distance shooters like hunters, 3D and indoor archers will setup for a closer point on. Shooters who enjoy shooting long distance generally set up with a longer point on distance to minimize hold over on far targets.

    Split Vision:


    This method is a step up from instinctive shooting in terms of conciously referencing an aiming point. For many shooters this it is based more on an acquired sight picture. There may not be any hard and fast gaps or references but they are aware of the arrow, riser, etc. These things are generally seen in the peripheral vision and things are lined up until the picture looks correct.

    Various Gap methods...

    Gap at target:


    This method involves the shooter knowing the amount of trajectory the arrow has at various points until the point on distance. They will generally pick a spot above or below the target that coincides with the amount of trajectory the have to compensate for and place the arrow on that spot. For example, say a shooter needs to hold 12" below the target at 20 yards. They visualize that spot and place the arrow at what they percieve to be 12" below the target. The focus remains on the intended target but they are maintaining that gap in their peripheral vision. This method is very similar to pick a point.

    Pick a Point:


    The setup the shot is virtually the same as gapping at the target. The main difference is where the focus lies. If a gap shooter maintains 90% focus on the target and 10% on the gap the opposite would be said of a pick a point shooter. 90% of the focus would be on holding on the pre-determined spot with 10% the actual target. In essence, the shooter is using the point to try hitting a certain spot but the trajectory carries it to the spot above or below.

    Short Gap (or Gap at Bow):


    This method is a little different from the gap at target method. It involves the shooter visualizing the target as being a spot that is directly in front of the arrow. Almost like a painting and the arrow is the brush. The point on distance is known. Above or below that the shooter would see the arrow (as a brush for my analogy) moving in very small amounts to compenate for trajectory. The archer moves the arrow in fractions of an inch at the bow. A picture is easier to explain but it involves seeing the target as a two-dimensional object. This can be difficult for some people because the brain sees in 3D and you have to see it as a picture and see the actual amount the arrow moves directly at the bow. This can be hard because while the arrow may only move a fraction of an inch at the bow the tip in relation to the target may move several inches or feet.

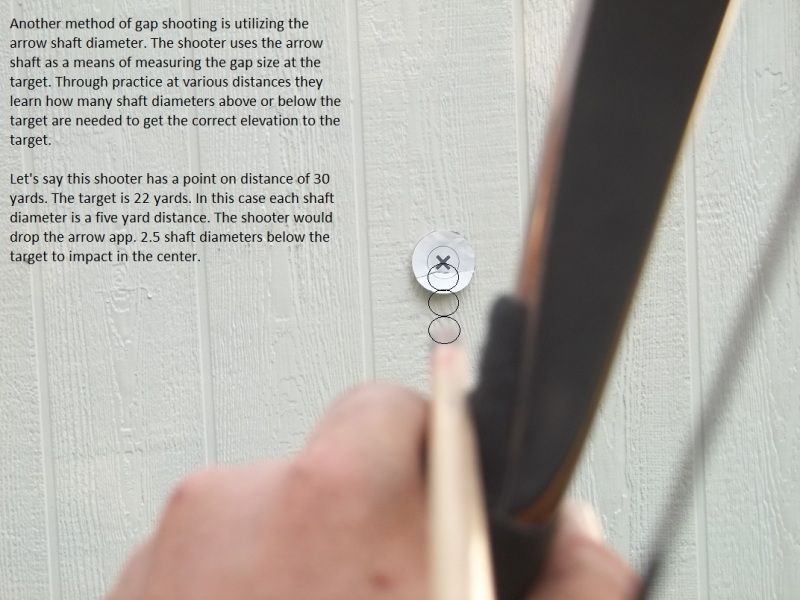

    Gapping with the Shaft:


    This one's fairly self explanatory. The shooter utilizes the shaft as a measuring device for how much to hold over/under. Through practice a shooter will know how many shaft diameters above or below they need to hold. The advantage to this method is it breaks down the adjustments into easy to see units and do not require as much visualization. The downside is as distances grow the shaft becomes larger in relation to the target and makes fine adjustment a little harder. At 20 yards the tip may only cover a portion of the target. At 60 yards the tip may cover the entire bail and one shaft diameter may move the visual reference several feet.

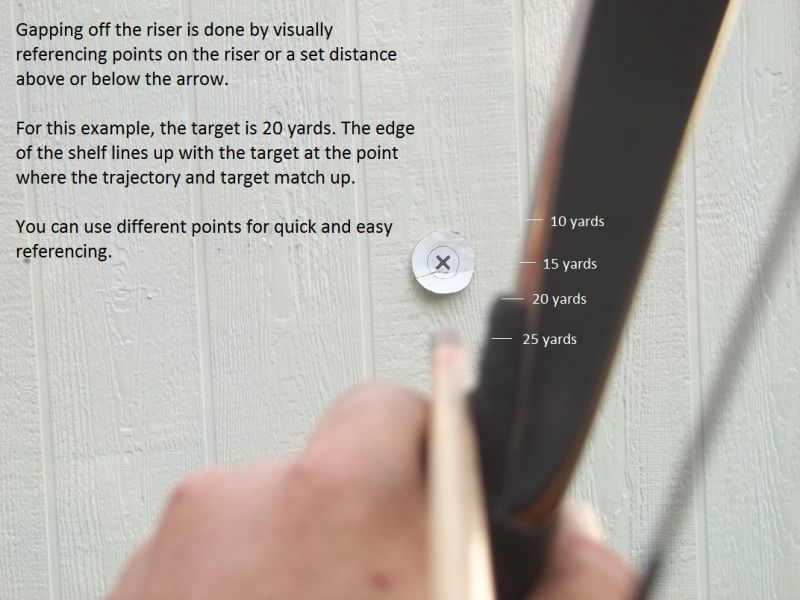

    Gap at Riser:


    This method utilizes various points on the riser as a rudimentary sighting reference. These references may be a side plate, a plunger, the arm of a rest, a lamination on the belly of the riser, the shelf of the bow or any point the shooter wants to use. A shooter estimates the yardage and at full draw will line up one of these references with the target. If the target is the correct distance and the correct reference is used the arrow will impact in the center of the intended target. This method may not be quite as precise as gapping at the target, short gapping or picking a point but it gives the shooter a concrete visual reference. You don't have to visualize arcs or trajectory, you simply line up the reference point and execute the shot.

    Now, many of these methods may be used in conjunction with another. Perhaps you have a long point on distance. You may gap off the riser at shorter distances because the gaps at target are huge and you can't visualize a short gap. As the targets get further out you may transition to a short gap because you can see the difference between 1/4" and 1/2" or you gap at target. At point on you simply utilize the point directly on the bullseye. And once past point on you may transition to pick a point. You know how far the arrow drops past point on so you visualize a spot above the target the appropriate amount and aim at that, trusting the arrow will drop into the target.



    These methods blur together. While one method will work for one shooter another may not be able to visualize the correct hold. This picture illustrates the actual hold remains the same but a shooter may utilize any of the above references to break down the aiming method into one the mind can use simply and effectively. That, in essence, is all these methods are. They are a means of compensating for the trajectory arrow and allowing the shooter to control the process. Some shooters will excel with the instinctive method because they aren't good at concentrating on a reference and the target. People like this are better off allowing the subconcious mind to take care of the aiming and allowing the concious to run the shot. Yet, for all the people that are good at instinctive there are just as many people who feel out of control without some type of referencing system. Without something to focus on they never develop confidence and never acquire the accuracy they desire. Shooters like this will do well to experiment with various aiming methods until they find one which suits there style.



    Please, lets keep this from devolving into an arguing match with a million quotes and twisting of words. I want this to be a good thread to help explain aiming methods to new and old shooters alike. If you are learning feel free to ask for help and if you currently use on of these methods chime in and describe how you do it.


  2. #2
    Join Date
    Jan 2012
    Location
    Norco, Ca.
    Posts
    146
    Outstanding post...all of these gapping post lately have cleared up a lot of things for me. Thanks, Max

  3. #3
    Great post, thanks. Clarified some different points for me, particularly using the riser as an aiming tool which I've been trying, as you said by using a measurement from the plate.
    Check out my Archery blog: http://charlesarcheryblog.wordpress.com

  4. #4
    Join Date
    Jul 2007
    Location
    Orange County, NY
    Posts
    1,119
    Very nicely done. . Thanks for posting

  5. #5
    Join Date
    Aug 2009
    Location
    New York State
    Posts
    1,175
    Best post of the Year !!!
    based on the above I'm in the Split Vision category, guess I read too many stories of Howard Hill.

  6. #6
    Join Date
    May 2012
    Location
    New Orleans
    Posts
    700
    Wow!! That is a Great explanation , with the visual reference ... Guess I’m Split vision too ...

  7. #7
    Very concise and well illustrated post. You will certainly help a lot of shooters with this information. Good job!

  8. #8
    Join Date
    Jun 2009
    Location
    Durham, NC
    Posts
    449
    Looks like I use split vision. Thanks for such a clearly illustrated post. Very informative.
    "All that is necessary for the triumph of evil is that good men do nothing."
    Bamabows - Hunter 70" 41@28
    Eddie Francisco - Rapture 64" 50@28
    Wing Archery - 1964 White Wing 69" 40@28
    Damon Howatt - 1974 Ventura 66" 28@28

  9. #9
    Join Date
    Jun 2009
    Location
    Durham, NC
    Posts
    449
    These illustrations are based on pre-draw. How many people aim from pre-draw (then simply draw and release) and how many aim while at anchor?
    "All that is necessary for the triumph of evil is that good men do nothing."
    Bamabows - Hunter 70" 41@28
    Eddie Francisco - Rapture 64" 50@28
    Wing Archery - 1964 White Wing 69" 40@28
    Damon Howatt - 1974 Ventura 66" 28@28

  10. #10
    Join Date
    Aug 2007
    Location
    USA
    Posts
    3,037
    Bookmarked!


    shoot often, hunt safe, have fun

  11. #11
    Join Date
    Feb 2004
    Location
    northern, Wisconsin
    Posts
    7,677
    Pretty much explains instinctive - don't know about all the rest

    Ncheels - many people do not have a "pre-draw" it is all one motion

  12. #12
    Join Date
    Dec 2011
    Location
    Broken Arrow, Ok
    Posts
    317
    I'm instinctive. Most def. awesome post

  13. #13
    Thanks for the positive responses! Glad it clears some things up.

    These illustrations are based on a full draw position. I shoot an arrow that usually hangs past the front of the riser an inch or two so thats what my sight picture looks like. If you shoot shorter arrows the tip would sit further back into the riser.

    Speaking of pre-draw aiming that is another method you can use. You simply choose a reference style and aim before the draw. Once the hold is correct you can draw back while focusing on the target. This method pretty much requires using a set bow arm and it better be rock steady. Also, it tends to work best on static targets. Once something moves (like a hunting shot) you better have practiced moving on target. I used to use a pre-aim method for several years until I began experimenting with other methods of aiming.

    I will also add in a couple pics of facewalking and stringwalking styles when I get time.

  14. #14
    Join Date
    Jan 2003
    Location
    East central Minnesota
    Posts
    8,349
    Nice post!

  15. #15
    Like I've said...a picture can be worth a 1000 words.

    Great job Str8 Shooter for putting this together!

    You did a great job of explaining and detailing the aiming techniques in your pics.

    There are some other aspects to Instinctive Aiming that will determine if an archer is truly aiming totally Instinctively or not...and anyone who wants to research it just needs to dig deeper into how our minds and our bodies work together to utilize objects within our sight pictures.

    Ray

  16. #16
    Join Date
    Apr 2008
    Location
    Keene Ca
    Posts
    1,832
    this is exactly what we need GREAT JOB !!!!!

    Gary

  17. #17
    Join Date
    Oct 2008
    Location
    Central Illinois
    Posts
    708
    Wow, I had no idea there were so many different methods of gap shooting. Excellent post!

  18. #18
    Join Date
    Jun 2009
    Location
    Durham, NC
    Posts
    449
    Quote Originally Posted by Str8 Shooter View Post
    Thanks for the positive responses! Glad it clears some things up.

    These illustrations are based on a full draw position. I shoot an arrow that usually hangs past the front of the riser an inch or two so thats what my sight picture looks like. If you shoot shorter arrows the tip would sit further back into the riser.

    Speaking of pre-draw aiming that is another method you can use. You simply choose a reference style and aim before the draw. Once the hold is correct you can draw back while focusing on the target. This method pretty much requires using a set bow arm and it better be rock steady. Also, it tends to work best on static targets.
    AH, I was focusing on what looked like an un-drawn bow string and so I thought you took these pics before drawing. That string must be a shadow. Now that you reply, I see that your arrow is, of course, too far back to be pre-draw.
    "All that is necessary for the triumph of evil is that good men do nothing."
    Bamabows - Hunter 70" 41@28
    Eddie Francisco - Rapture 64" 50@28
    Wing Archery - 1964 White Wing 69" 40@28
    Damon Howatt - 1974 Ventura 66" 28@28

  19. #19
    Join Date
    Dec 2005
    Location
    Tallinn, Estonia
    Posts
    3,317
    great Job

  20. #20
    Join Date
    Jul 2010
    Location
    Grand Rapids,MN
    Posts
    817
    Str8 Shooter,

    That got the "gap at the bow/arrow question I had in the other post explained. Thank you! I took the liberty of saving those pictures for future reference.

    Arne
    Eclectic Archery Coach
    There is only ONE important arrow -- the one on your bow right now!

  21. #21
    Join Date
    Oct 2007
    Location
    NJ
    Posts
    3,652
    Good info!
    Mathews MR5 29"@71lbs
    Gold Tip Kinetic Big Game .200 752gr@239fps 24.21% FOC

  22. #22
    Join Date
    Jun 2009
    Location
    Ireland
    Posts
    1,278
    Great explanation.

  23. #23
    Join Date
    Mar 2003
    Location
    Florida
    Posts
    322
    Wow. Thanks for taking the time to post this. It helps tremendously.

  24. #24
    Join Date
    Feb 2004
    Location
    northern, Wisconsin
    Posts
    7,677
    Without trying to start a huge argument - I think that your work is awesome here and to me - from my perspective - it shows pretty clearly that in the end - there is no way that anyone is going to be able to use any of those conscious methods of aiming a barebow soley at a conscious level - look at the sight pin of a sighted bow and how tiny it is - and guys have trouble lining that up on targets and they even use peeps on the string - and are taught to look through the sight and just focus on the target - rather than to try and consciously line up the sight - how much more must be the case when using such crude sighting methods as those conscious aiming methods you described that are used by barebow shooters.

    I think in the end that there is a very fine line between how any good shot actually aims - and contrary to what many in this forum like to claim - I think that all good shots are actually instinctive shooters and that their subconscious is aiming the bow - these conscious aiming methods may get the bow in the general vicinity of the target - but to get really accurate - the fine tuning that would be needed by these conscious methods is just not even possible with such crude "sighting" methods - it has to be done at a subconscious level and your pics and clarifications of these different methods convinces me of this suspicion of mine more than ever.

    Kinda funny - some guys think that everyone is a gap shooter - I think everyone that is good is an instinctive shooter -

  25. #25
    The OP posts would make a great sticky post for future reference.
