Thread: My First DS Advantage product...new arrow rest

  1. #1

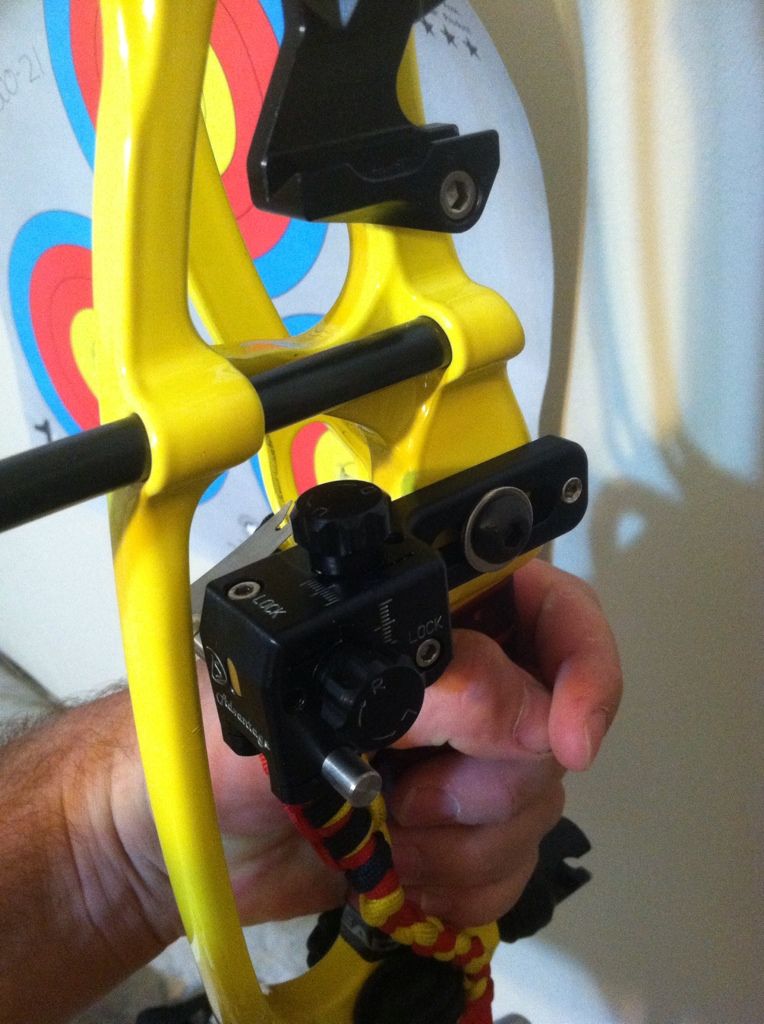

    My First DS Advantage product...new arrow rest

    I have been admiring the DS Advantage target sight for years.



    When I heard mention of a new DS Advantage blade launcher arrow rest...
    I said..I gotta get me one of these.









    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net


  2. #2












    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  3. #3
    How much is it sold for?
    Archers patronizing and bashing fellow Archers with the purest distillate of ignorance, arrogance, and condescension.

  4. #4

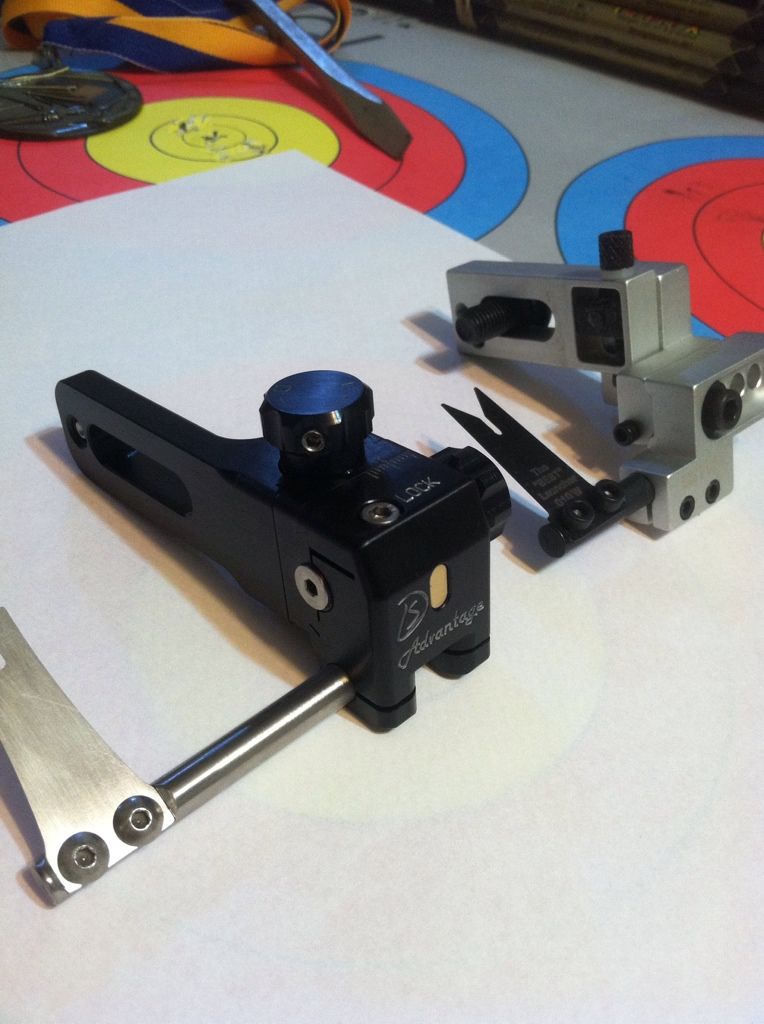

    Fit and finish is flawless.

    Dovetailed ways. Super tight dovetails.

    Axle is WAY HEAVY DUTY.

    2-inches of adjustment on the axle, when the right end of the axle is flush with the arrow rest body.

    Nice handy knobs, with click detent micro adjust...
    so NO TOOLS to adjust horizontal
    so NO TOOLS to adjust vertical.

    FLUSH mounted LOCKDOWN set screws, for HORIZ and for VERT,
    once you find YOUR setting. Absolutely PERFECT.
    My "other" blade rest also has micro click adjustment, but no lock down feature.

    My "other-other" blade rest has micro adjustment, NO CLICK adjustment, with SUPER TINY/SKINNY adjustment knobs, but it has a lock down bolt.
    So,
    with my "other-other" blade rest,
    gottta do the TWO-STEP..

    find the allen key,
    unlock the lock down bolt
    grab the tiny 1/8th diameter knurled knob
    and judge a 1/16th turn or a 1/8th turn of the SUPER SKINNY TINY knob
    and then carefully lock down the set screw, after I pull out the correct hex wrench..

    then,
    put away the hex wrench,
    and then shoot
    and then
    pull out the hex wrench,
    loosen the lock down set screw
    turn the SUPER SKINNY TINY knob,
    adjust the arrow rest,
    then,
    lock down the set screw...

    you get the idea.


    The DS Advantage arrow rest,
    has CLICK settings,
    with the SUPER LARGE knob..

    NO TOOLS,
    so you can leave the lock down set screw bolt LOOSE
    and the CLICK DETENT knob STAYS in position...

    so NO NEED to lock down the set screw/bolt,
    cuz of the CLICK DETENT feature...


    just tune,
    adjust the knob ONE CLICK
    and tune some more
    and ADJUST the knob say TWO CLICKS the other direction
    and then
    tune some more,
    change your mind,
    and go back ONE CLICK in the original direction,
    and decide its GOOD...

    and then,
    now,
    ONE TIME,
    find the hex wrench
    and lock down the set screw / bolt.

    HEAVEN.

    Machine work is near medical device grade quality.
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  5. #5
    Join Date
    Jun 2009
    Location
    Minnesota
    Posts
    4,958
    Looks different. Never heard of ds advantage products, are they made here or overseas somewhere?
    2014 Xpedition Xcentric BLACK 30" 60# qad hd, extreme sight, K3 stabilizer, truball ht, victory vaps

  6. #6
    Quote Originally Posted by cyclepath View Post
    Looks different. Never heard of ds advantage products, are they made here or overseas somewhere?

    Made by Detlef123456 here on AT.

    He is up in Canada.

    He makes the DS Advantage target sight.
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  7. #7
    Join Date
    Nov 2009
    Location
    Redding california
    Posts
    12,505
    How much buddy, looks fantastic!
    EXWOLVERINE STAFF SHOOTER... FOR THE BEST IN STRINGS VISIT...
    parknsonsarchery.com
    NO LIMIT ARCHERY STAFF... PROUDLY SHOOTING THE RINGER RELEASE AND GRAVE DIGGER BROADHEADS

  8. #8
    Join Date
    Dec 2002
    Location
    Wyoming
    Posts
    8,603
    Blade angle appears to be adjustable. Is it a 'standard' loose clamp design, or can it me micro-adjusted like the SH Edge?

    Does it accept all standard blades, like the 'best blade'?
    There's not much of a lesson to be learned the second time a calf kicks you in the balz.

  9. #9
    Join Date
    Apr 2004
    Location
    Oshkosh, Wisconsin
    Posts
    13,120
    Looking forward to hearing more about this from you N&B.

    For those that asked I was quoted 100 shipped from Detlef for the rest.
    2014 PSE Full Throttle 26.5" DL, 60lbs, CJ Mark III sight, AQ Custom Rods,PSE X Weave Pro 300, 85 Grain Grim Reapers
    2014 PSE Full Premo Breathn Custom SHW Prairie, CJ Mark III sight, PSE Phantom rest, PSE Pro X Weave 300, 85 grain Grim Reapers

  10. #10
    Join Date
    Apr 2009
    Location
    NSW Australia
    Posts
    1,753
    I use one of Detlef's sights and they are as good as it gets, I'm sure the quality of his rest will be the same. Anyone that appreciates quality will love it.

  11. #11
    Quote Originally Posted by Rolo View Post
    Blade angle appears to be adjustable. Is it a 'standard' loose clamp design, or can it me micro-adjusted like the SH Edge?

    Does it accept all standard blades, like the 'best blade'?
    Not loke the Spot Hogg Edge.

    Double clamp on the 1/4-inch diameter axle. No micro adjust for blade angle.
    I usually use a protractor.

    Spacing on the two bolts is 5/16ths....center to center.
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  12. #12
    Join Date
    Dec 2002
    Location
    Wyoming
    Posts
    8,603
    Quote Originally Posted by nuts&bolts View Post
    Not loke the Spot Hogg Edge.

    Double clamp on the 1/4-inch diameter axle. No micro adjust for blade angle.
    I usually use a protractor.

    Spacing on the two bolts is 5/16ths....center to center.
    Thanks.

    Does it come with a blade(s)? Size(s)?
    There's not much of a lesson to be learned the second time a calf kicks you in the balz.

  13. #13
    Join Date
    Jul 2009
    Location
    Tucson, Az
    Posts
    11,788

    My First DS Advantage product...new arrow rest

    The rest is really nice. I have been messing around with mine for a week or so now. When not locked down the rest is still super tight. Amazing fit and finish


    Sent from my Verizon iPhone using Tapatalk
    Vantage Elite +'s (77#, 60#, 55#) And a Matrix with Spirals for hunting
    Things I Like: Honey Badger Bowstrings, Gold Tip Arrows, Affordable Stabilizer Weights (ASW), Grave Digger Broadheads, and DS Advantage Products

  14. #14
    Join Date
    Aug 2007
    Location
    Canada
    Posts
    1,466
    I have 4 of Detlef's sights and they are all built perfectly. Thanks for the post, I am ordering up one his rests.
    "Democracy is two wolves and a lamb deciding on what to have for lunch, Liberty is a well armed lamb contesting the vote."

  15. #15
    Join Date
    Nov 2008
    Location
    NE US
    Posts
    34,321
    I like the looks. It appears solid and well made, I like the adjustments and where they're located (should work great on TEC risers) and I really like that rod that holds the blade and how it appears to be adjustable in regards to blade angle. Overall it looks nice.

    What's it cost?
    Sent via my 1918 Bell hand crank phone

  16. #16
    Join Date
    Jul 2009
    Location
    Tucson, Az
    Posts
    11,788

    My First DS Advantage product...new arrow rest






    Sent from my Verizon iPhone using Tapatalk
    Vantage Elite +'s (77#, 60#, 55#) And a Matrix with Spirals for hunting
    Things I Like: Honey Badger Bowstrings, Gold Tip Arrows, Affordable Stabilizer Weights (ASW), Grave Digger Broadheads, and DS Advantage Products

  17. #17
    Join Date
    Apr 2010
    Location
    middletown pa
    Posts
    2,704
    looks nice I've been considering a new blade rest for the zues this may be the ticket

  18. #18
    Join Date
    May 2012
    Location
    Tampa, Florida, United St
    Posts
    264
    How does this rest compare to the Brite Site Pro Tuner verticlick rest?
    Does the Brite Site one have a lockdown feature like this one does?
    Hoyt Vantage Elite, Spirals Shibuya Sight, Doinker Platinum Hi Mods, Shrewd mounts, Stan Release
    Hoyt Ion-X Recurve, Formula 720 carbon limbs, Shibuya Sight, Fuse Carbon Blades
    No more punching I've used a hinge since my 1st month and am not looking back
    Just developed a stronger anchor with my recurve and LOVING the smaller groups!

  19. #19
    Quote Originally Posted by Rantz View Post
    How does this rest compare to the Brite Site Pro Tuner verticlick rest?
    Does the Brite Site one have a lockdown feature like this one does?
    The BriteSite ProTuner has a knob to click adjust the horizontal setting (centershot).
    No lock down.

    The Spot Hogg Premier arrow rest, has no click adjust, just a tiny knob to adjust horizontal and vertical,
    but the Spot Hogg Premier does have a lock down allen bolt...

    so the Spot Hogg Premier is a three step micro adjust procedure...
    unlock the bolt,
    grab the super skinny, tiny knob and adjust (no click...just judge a 1/16th or 1/8th or 1/4 turn)
    then, lock down the bolt...

    shoot groups,
    unlock the bolt,
    grab the super skinny, tiny knob and adjust (no click...just judge a 1/16th or 1/8th or 1/4 turn)
    then, lock down the bolt...


    With the Brite Site Pro Tuner,
    very handy click adjust for the center shot...
    no lock down, however,
    but,
    just grab the knob and make one click adjustment in one direction
    or
    make a two click adjustment in the other direction.

    Very handy....just make sure NO ONE ever touches your arrow rest settings.

    As field14 would say,
    we ALL should have the arrow rest centershot measurements WRITTEN DOWN in our log book,
    so.... a lock down bolt should not be necessary.


    The DS Advantage arrow rest has LARGE knobs,
    with an ARROW indicating which direction is UP
    with an ARROW indicating which direction is DOWN

    with an ARROW indicating which direction is LEFT
    with an ARROW indicating which direction is RIGHT.

    The click detents hold the knob in position,
    so you can CLICK adjust away....horizontal or vertical...

    and when you are DOWN tuning the DS Advantage arrow rest,
    then,
    you can SNUG up the lock down bolt,
    WHEN you are finished.

    ONE STEP lock down, at the END of tuning.

    Fantastic design.

    I look forward to installing this on the DST 40,
    and swapping out the Spot Hogg Premier arrow rest.
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  20. #20

    Re: My First DS Advantage product...new arrow rest

    Cool....what's the cost

    I know you guys are ignoring these questions ....but we aint gonna stop....lol

    Sent from my Motorola Electrify using Tapatalk 2
    Kevin Garceau

    Owner: G-Force Archery and Outdoors
    Custom high performance arrows built to your needs.
    I can help with any and all archery accessory needs at competitive pricing

  21. #21
    Join Date
    Apr 2010
    Location
    middletown pa
    Posts
    2,704
    someone said a buck shipped but not certain if that includes blade or not 5/16 center to center on blade mounting holes

  22. #22
    Join Date
    May 2012
    Location
    Tampa, Florida, United St
    Posts
    264
    Nuts&Bolts, fantastic side by side comparison!

    Garceau, Post #9 already said it was around $100

    Also, how micro adjustable is it really? Brite Site says theirs is .003" per click. Can the DS advantage do this?

    It sounds like I am leaning towards the DS advantage rest over the brite site one.

    Does it have a variety of blade sizes? Or at least come with one (some)?
    Hoyt Vantage Elite, Spirals Shibuya Sight, Doinker Platinum Hi Mods, Shrewd mounts, Stan Release
    Hoyt Ion-X Recurve, Formula 720 carbon limbs, Shibuya Sight, Fuse Carbon Blades
    No more punching I've used a hinge since my 1st month and am not looking back
    Just developed a stronger anchor with my recurve and LOVING the smaller groups!

  23. #23
    Join Date
    Aug 2008
    Location
    Masontown, PA
    Posts
    1,828
    In on this one so I can read about it in the future. With it being bow season I'm sure I'll forget all about this come indoor season..

  24. #24
    Join Date
    Nov 2009
    Location
    Redding california
    Posts
    12,505
    Is he gonna have anodized ones coming. :-)
    EXWOLVERINE STAFF SHOOTER... FOR THE BEST IN STRINGS VISIT...
    parknsonsarchery.com
    NO LIMIT ARCHERY STAFF... PROUDLY SHOOTING THE RINGER RELEASE AND GRAVE DIGGER BROADHEADS

  25. #25
    Join Date
    Apr 2004
    Location
    Oshkosh, Wisconsin
    Posts
    13,120
    For those that aren't reading all the posts Detlef quoted me $100 shipped to my door. The following is an exact quote from him to me in a PM.

    "when I decided to build a rest I wanted something simple and solid
    the adjustments are micro with lock down
    I use dovetails just like on my sights
    the angle of the blade is adjustable but only manually
    I do make my own blades but I made them to standard so the can also be bought
    the price right now is 100$ and free shipping I try to get it out there and tested as much as possible"

    That being said I didn't ask about the lanchers but as he stated you should be able to use any blade on it. I'll have one of these by years end.

    VFT I didn';t ask about colors but I would have to assume he could do that as he does with his sights. Maybe an upcharge but I would PM him and ask for the definite answer.
    2014 PSE Full Throttle 26.5" DL, 60lbs, CJ Mark III sight, AQ Custom Rods,PSE X Weave Pro 300, 85 Grain Grim Reapers
    2014 PSE Full Premo Breathn Custom SHW Prairie, CJ Mark III sight, PSE Phantom rest, PSE Pro X Weave 300, 85 grain Grim Reapers

Page 1 of 4 123 ... LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
