Thread: French tuning / BH tuning

  1. #1
    Join Date
    Sep 2005
    Location
    Texas
    Posts
    82

    French tuning / BH tuning

    Where does BH tuning fit into the french tuning method? Should BH tuning be done before or after?



  2. #2
    Walk back or french tune a field point the same weight as your broadhead first, this will give you a good starting point for your broadhead tuning. If your broadhead tipped arrows don't tune well after you center tune your bow with field points there may be other problems like cam timing, fletching contact, incorrect arrow spine or nock height issues.

  3. #3
    Quote Originally Posted by lenny288 View Post
    Where does BH tuning fit into the french tuning method? Should BH tuning be done before or after?
    Start with field points.
    The idea is to get the arrow rest center shot as good as you can get it
    (very close ball park),
    and then complete your tuning with broadheads.


    You can use paper tuning to figure out your arrow rest centershot.

    You can use walk back tuning to figure out your centershot.

    You can use French Tuning to figure out your centershot.

    You can use the "eyeball" method, and get er close to figure out your centershot.

    You can use what I call MODIFIED French Tuning to figure out your centershot.


    Just shoot at a string with a weight on the end
    at 3 feet or 6 feet, something close,
    and very comfortable.

    The goal is to keep adjusting your sight pin a tiny bit left
    or a tiny bit right,
    until your field point, splits the string in half.

    Take your time and try to RELAX into a steady hold.
    You WILL split the string in half, when you adjust your sight pin
    a tiny bit left or right, e v e n t u a l l y.


    Then,
    pick a longer distance, whatever is available to you.
    30 feet would be great.
    20 feet works, if that's all you have.
    Just any distance longer than your short distance.

    Fire a single arrow, if you are in danger of a robin hood.
    If you are not in danger of a robin hood, at your "longer distance",
    then by all means,
    shoot a 2 arrow or 3 arrow group........


    Here is a QUOTE from axp117crow

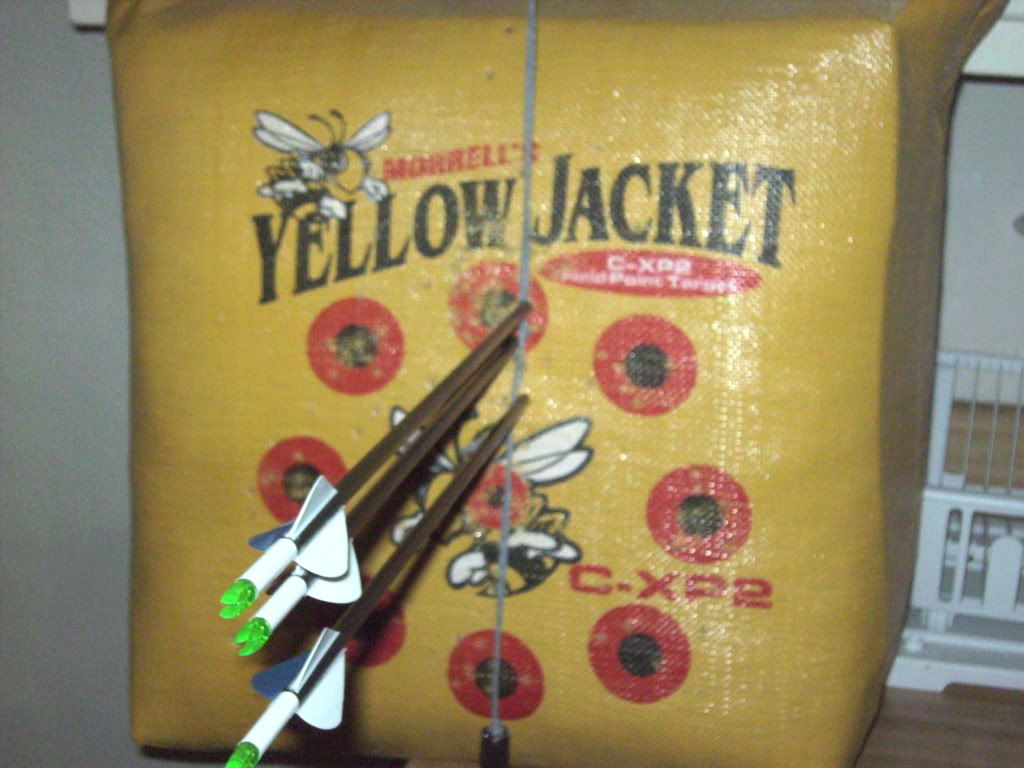

    here is my [axp117crow] FINISHED GROUP AT 10 yards

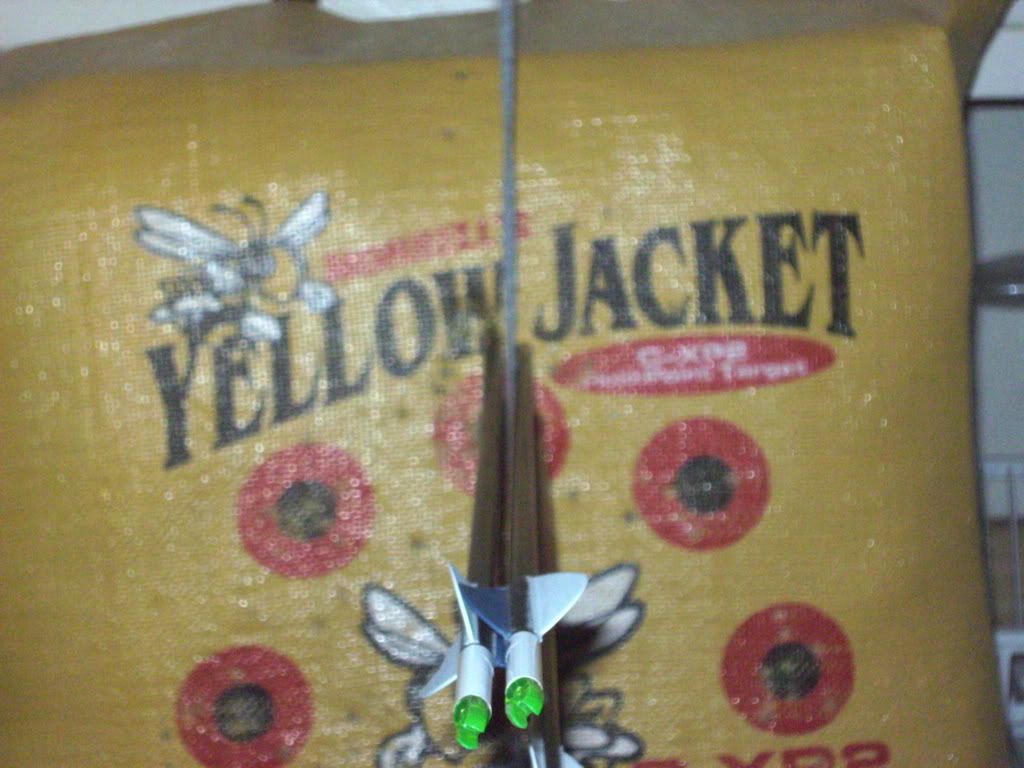

    FINISHED GROUP AT 3yds



    i [axp117crow]split the string once(most of the time the arrow just pushed it into the target). i have to get longer distances to make sure i'm perfectly dialed in, there may be some tiny adjustments still needed. but this works really good if you have limited space. also, it worked better for me than paper and walkback tuning


    So, folks,
    no need to be an expert shot.

    Yup,
    do MODIFIED FRENCH TUNING works best indoors.

    Just a short, really short distance.

    Just a longer, whatever available space you have, distance.









    DETAILED instructions, below.

    Here is another method,
    especially when you don't have a lot of space.


    I call it Modified French Tuning.
    Only need 3 yards in front of the target,
    and
    only need 10 yards in front of the target.



    Modified French Tuning.



    Another way to do this,
    is what I call "Modified French Tuning".

    You only need 10 yards of space in front of the target to do this.




    John Dudley talks about the French Tuning method on his website.

    I have modified his instructions to make it simpler,
    and my "short version" will help you
    set the left to right position for your pins (windage),
    and
    help you set the left to right position of your arrow rest (centershot).

    When you are done with my "short version" of French Tuning,
    then your arrow will be firing straight,
    at short, medium and long distances.

    You will need to go to the practice range
    to figure out how adjust the vertical spacing of your pins,
    for 20 yds and 30 yds, etc.


    You need 10 yards of space to do this.

    Just remember...
    at 3 yards,
    adjust the sight pin to the left or to the right.

    Keep adjusting the sight pin left or right,
    until you can hit the string with the weight on the bottom,
    where the string splits the x-ring down the middle.

    Take your time,
    and keep fine tuning, until the field point
    nails the string right on top.



    At 10 yards,
    shoot a 3 arrow group. Size of the group is not important.
    Just keep adjusting the arrow rest to the left or to the right,
    until the hanging string splits your 3-arrow group in half.


    Now, go back to 3 yards,
    and double check that the field point still nails the hanging string
    right on top of it. You might need to make
    a tiny tiny adjustment.

    Then, go back to 10 yards,
    and double check the position of the arrow rest.

    You get the idea.




    Let's tackle this one step at a time.

    First,
    let's tackle the centershot for the arrow rest
    and
    find the correct windage (left-right adjustment) for the pins.


    I have a simplified version of something called French Tuning.
    Don't worry about what this method is called.

    Very simple to do.




    Hang a target face so the bullseye is at your shoulder height.

    Put a nail at the top,
    and hang a weighted string,
    so the string splits the bullseye in half.

    Now,
    start at 9 feet. Yup, just 9 feet.

    Fire a field point arrow.

    If the field point arrow misses the string to the left,
    then move all the pins to the left. (Adjust the entire sight housing).

    If the field point arrow misses to the string to the right,
    then move all the pins to the right.

    The goal is to nail the string perfectly.
    You want your field point arrow to be exactly below the center
    of the bullseye.



    Now,
    go back to 10 yards.

    Fire a 3 arrow group.

    Find the center of the arrow group.

    If the center of the arrow group is to the left of the string,
    move the arrow rest to the right.

    If the center of the arrow group is to the right of the string,
    move the arrow rest to the left.

    Goal is to have the hanging string split your arrow group in half.



    Now,
    go back to 9 feet.

    Fire a field point arrow.

    If the field point arrow does not exactly nail the hanging string,
    then adjust all of your pins to the left or right,
    until the arrow is dead center under the exact center of the bullseye.


    Now,
    go back to 10 yards.

    Adjust the arrow rest in tiny amounts,
    until the hanging string splits your 3 arrow group in half.


    When you are done,
    you can fire a field point arrow from 9 feet
    and it will be exactly underneath the center of the bullseye.

    Your 3 arrow group from 10 yards,
    will also be split in half by the hanging string.



    Now, your centershot (arrow rest)
    and your windage (pins) will be perfect.
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  4. #4
    When you have your field points shooting "straight",
    after whatever method you used to figure out the arrow rest
    horizontal position....

    then
    go to this thread for broadhead tuning.

    http://www.archerytalk.com/vb/showth...ferrerid=22477
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  5. #5
    Join Date
    Sep 2005
    Location
    Texas
    Posts
    82
    Thanks! This really helps.
    Just got the bow back from having both limbs replaced and new string and cable. Both limbs split.
    I am trying to get it back to shooting right before turkey season starts in 2 weeks.

  6. #6
    Join Date
    Dec 2006
    Location
    california, pa
    Posts
    367
    i did the modified french tuning to get really close, as explained my nuts&bolts. then when i bh tuned, it only took 2 really minor rest movements to get it dead on with my fp's. i still have to shoot past 10 yeds though, i've been getting home after dark. but i know i'm really close, if not dead on, right now. the modified french tuning got me really close.

  7. #7
    Join Date
    Jan 2007
    Location
    Bartlett, ND
    Posts
    1,148
    I have walk backed with god results but I really like this for when I cant shot outside. Nuts&Bolts, you mentioned moving string loop to try to tighten groups. Can I use the top limb to fine tune this? My rest is difficult to adjust in very small increments. If I stay within a full turn or less? Any downsides to this? Thanks.
    PS I really enjoy your posts, makes me a better shooter/tuner.
    "05" Patriot/"06" Allegiance
    Winners Choice
    Copper John & Meta Peep
    Mean V CSS
    Ripcord/Limbdriver

  8. #8
    Quote Originally Posted by kzz1king View Post
    I have walk backed with god results but I really like this for when I cant shot outside. Nuts&Bolts, you mentioned moving string loop to try to tighten groups. Can I use the top limb to fine tune this? My rest is difficult to adjust in very small increments. If I stay within a full turn or less? Any downsides to this? Thanks.
    PS I really enjoy your posts, makes me a better shooter/tuner.


    The cam timing is related to how much bowstring
    is above the d-loop
    and how much bowstring is below the d-loop.

    So, if you play with the d-loop position
    (a bit higher up the bowstring
    or a bit lower down the bowstring),
    you might help get your groups a touch tighter.

    Just keep track of what you did,
    and see if you get better arrow groups.



    Play with draw weight.
    Try 1 turn less on both limb bolts.
    See what happens. Just write down what you did,
    so you can go back to the original setting.

    1 turn less on both limb bolts
    usually will help tighten up arrow groups.

    Usually, but not always.


    I was working with a fellow
    (Hoyt ProElite and X10 ProTour arrows).

    For him,
    the best groups came at 20 yards
    with 1 extra turn on both limb bolts (more draw weight).



    So, play with your draw weight a little bit.


    Play with the position of your d-loop
    a tiny bit higher than usual,
    and see what happens.


    If you use tied nocking points,
    like in Deezlin's excellent picture thread,
    then moving the nocking points up 1 or 2 complete turns
    is an easy way to experiment
    with d-loop position on your bowstring.

    http://www.archerytalk.com/vb/showth...ferrerid=22477


    If you do use Deezlin's method,
    make sure you leave maybe 1/32nd between the nock
    and the top tied nocking point (just a tiny gap).

    Guarantees zero nock pinch.
    www.nutsandboltsarchery.com
    http://www.archerytalk.com/vb/showth...=who+wants+dvd
    Send me an email for DVD = $25.00....

    alanlui@comcast.net

  9. #9
    Join Date
    Jan 2007
    Location
    Bartlett, ND
    Posts
    1,148
    I cannot move my loop or the tied in knocks very easily. That is why I was wondering if using the rest adjustment or moving the nock point up or down by loosening or tightening the limb would work. I know these change nock height but not the amount of string above or below the loop. Thanks
    "05" Patriot/"06" Allegiance
    Winners Choice
    Copper John & Meta Peep
    Mean V CSS
    Ripcord/Limbdriver

  10. #10
    Join Date
    Jan 2007
    Location
    Bartlett, ND
    Posts
    1,148
    I forgot to add that I am asking about a single cam.
    "05" Patriot/"06" Allegiance
    Winners Choice
    Copper John & Meta Peep
    Mean V CSS
    Ripcord/Limbdriver

  11. #11
    What you are talking about is "tiller tuning" and it does help some and others it does not. Just really depends on your form. Dloop tuning does not move your nocking point if you have used tied or brass nocks only tunes the string position above and below the dloop.
    If you want try the tiller tuning first seeing moving your dloop seems to be a task you are not looking forward to, I would try that and see if your groups tighten. I never use more than 1/2 turn in either direction. This could take a week or two of shooting to get an average group one way versus an average group another.
    IMO dloop tuning is only going to tighten your groups maybe a 1/4" but others feel that it is essential to there tuning ritual. You will just have to try it to see if it helps you. Most find if they have the bottom knot further from the nock that it helps align the release directly behind the arrow nock giving more horizontal travel of the arrow seeing it was release from directly behind it.

  12. #12
    Join Date
    Sep 2005
    Location
    Texas
    Posts
    82
    Nuts&Bolts
    Did the French tuning today . . .
    Thank you once again for your willingness to share your knowledge.

    I was able to center tune using this method faster than using the walk back tuning. Shot the last 3 series 3 yd, 10 yd, and 20 yd, all 3 was in line! I've never been able to do this using the other method. I'll be replacing 2 knocks, hope the shafts didn't split . I'll be checking that more closely tonight.

    I think next time, (wih my kids bow) I will put 3 lines and have them shoot the 3 arrows at seperate lines. Would this show the same results?

  13. #13
    Just wanted to say thanks to NUTS&BOLTS for the Modified French Tuning method, perfect for setting up in my basement. I could dial it in pretty close, but this was a much better method and only took a few minutes to set up.
    Thanks Again
    Mike

    Modified French Tuning 002 (Small).jpg

    Modified French Tuning 001 (Small).jpg

  14. #14
    Marked

  15. #15
    I need to do this.

  16. #16
    Join Date
    Feb 2009
    Location
    In.
    Posts
    5,417
    Ive done this for many years and it works....once in a blue moon I may have to finalized with BH tuning(Razortricks)...... I have not paper tuned in as many years once I started using this method.....My FP's/Tricks and Steelhead XL's all hit the same POI out to 50yds....
